Selecting the right wire mesh specification is crucial for achieving optimal filtration performance. Two key parameters guide this selection: mesh count and micron rating. Understanding their relationship helps engineers and procurement professionals specify the correct product for their needs.
What is Mesh Count?
Mesh count refers to the number of openings per linear inch in the wire mesh. A 100 mesh screen has 100 openings in each direction per square inch, resulting in 10,000 openings per square inch total.
Common Mesh Counts and Their Applications:
- 20-40 mesh: Primary filtration, large particle removal
- 60-100 mesh: General industrial filtration, powder screening
- 150-200 mesh: Fine particle separation, paint filtration
- 325-400 mesh: Ultra-fine filtration, pharmaceutical applications
- 500+ mesh: Laboratory-grade precision screening
What is Micron Rating?
Micron rating indicates the absolute particle size that the mesh can filter, measured in micrometers (μm). One micron equals one-millionth of a meter or approximately 0.00004 inches.

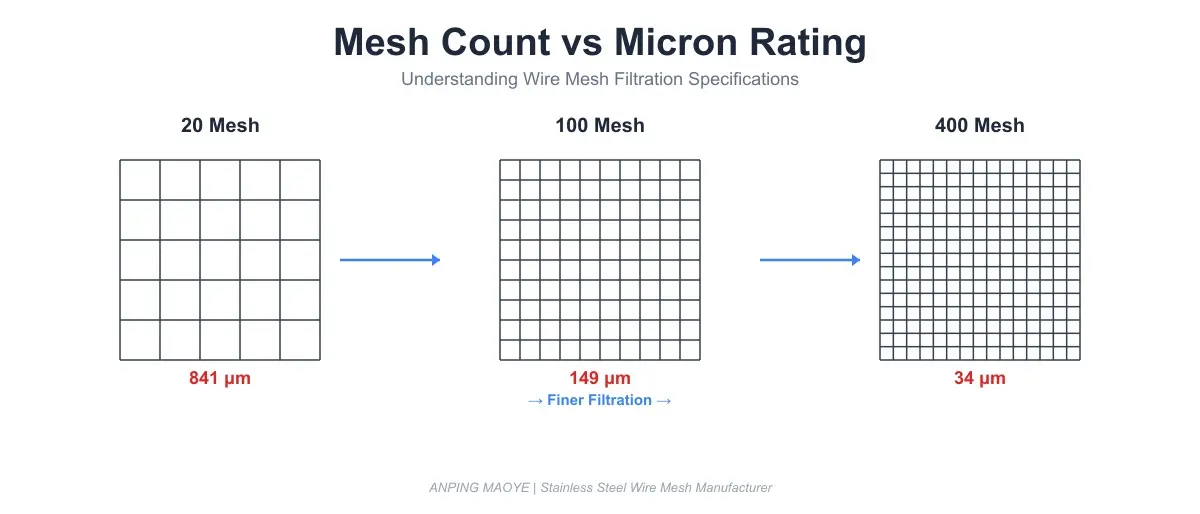

Mesh Count to Micron Conversion (Approximate):
| Mesh Count | Micron Rating | Wire Diameter |
|---|---|---|
| 20 | 841 μm | 0.50 mm |
| 40 | 420 μm | 0.25 mm |
| 60 | 250 μm | 0.19 mm |
| 100 | 149 μm | 0.11 mm |
| 200 | 74 μm | 0.05 mm |
| 325 | 44 μm | 0.04 mm |
Key Factors Affecting Filtration Performance
1. Wire Diameter
Thicker wires create smaller openings for the same mesh count, affecting both filtration precision and mesh durability. Standard wire diameters range from 0.02mm to 0.50mm.
2. Weave Pattern
- Plain Weave: Most common, square openings, good for general filtration
- Twill Weave: Diagonal pattern, allows finer mesh with thicker wires
- Dutch Weave: Rectangular openings, excellent for high-pressure filtration
3. Open Area Percentage
This indicates how much of the mesh surface is open space. Higher open area means:
- Better flow rates
- Lower pressure drop
- Potentially reduced structural strength
How to Select the Right Specification
Step 1: Define Your Filtration Goal
- Absolute filtration: Remove all particles above a specific size
- Nominal filtration: Remove most particles above a specific size
- Protective screening: Prevent large contaminants from entering equipment
Step 2: Consider Operating Conditions
- Flow rate requirements: Higher flow needs larger open area
- Pressure conditions: High pressure requires stronger mesh construction
- Temperature: Extreme temperatures may require special alloys
- Chemical exposure: Corrosive environments need 316 grade or higher
Step 3: Balance Precision with Practicality
Finer mesh provides better filtration but also:
- Higher pressure drop
- More frequent cleaning requirements
- Greater susceptibility to clogging
- Higher cost
Industry-Specific Recommendations
Water Treatment
- Primary filtration: 20-40 mesh (841-420 μm)
- Secondary filtration: 60-100 mesh (250-149 μm)
- Polishing: 150-200 mesh (100-74 μm)
Food and Beverage
- Juice filtration: 80-150 mesh (177-100 μm)
- Oil filtration: 100-200 mesh (149-74 μm)
- Powder screening: 40-100 mesh (420-149 μm)
Chemical Processing
- Crystallization: 60-200 mesh (250-74 μm)
- Catalyst recovery: 100-325 mesh (149-44 μm)
- Final product filtration: 200-400 mesh (74-37 μm)
2026 Industry Update: Digital Micron Verification
Recent advances in automated optical inspection (AOI) have improved micron verification accuracy for woven wire mesh. As of 2026, leading manufacturers now use laser diffraction and digital image correlation (DIC) to verify aperture size within ±2% tolerance — a significant improvement over traditional manual microscope measurement (±5–8%). When sourcing mesh for critical applications (pharmaceutical, aerospace, semiconductor), request a digital micron verification report alongside the standard MTC. This report includes:
- Aperture size distribution histogram
- Wire diameter uniformity across the roll
- Defect mapping (broken wires, misaligned weaves)
- Statistical process control (SPC) chart for the production batch
Testing and Validation
We recommend conducting filtration tests with sample mesh before large-scale procurement. Our laboratory can perform:
- Particle retention testing
- Flow rate analysis
- Pressure drop measurement
- Long-term durability assessment
Conclusion
Understanding the relationship between mesh count and micron rating is essential for specifying the right filtration media. While conversion tables provide useful guidance, actual performance depends on wire diameter, weave pattern, and operating conditions.
Our technical team can help you determine the optimal mesh specification for your specific application. Contact us with your requirements for expert guidance.
