Not all stainless steel mesh is manufactured for the same purpose. A procurement manager sourcing filtration media for a petrochemical refinery faces entirely different material, certification, and durability requirements than a buyer purchasing mesh for food processing equipment or battery electrode coating. Choosing the wrong grade, weave, or micron rating leads to premature failure, production downtime, and regulatory non-compliance.
At ANPING MAOYE, we manufacture 304, 316L, and 904L stainless steel mesh for industrial processing clients across eight major sectors. This guide is designed for procurement managers, engineering buyers, and supply chain professionals who need to specify, source, and validate custom mesh solutions for their specific industry. For each sector, we provide the recommended grade, mesh count, weave type, and key documentation requirements — plus how to structure a quotation request that gets accurate pricing on the first round.
TL;DR — Sector Quick Reference for Procurement
| Processing Sector | Recommended Grade | Mesh Range | Weave | Critical Requirement | Typical Lead Time |
|---|---|---|---|---|---|
| Chemical processing | 316L / 904L | 40–325 | Twill / Dutch | Acid resistance, material cert | 3–5 weeks |
| Petrochemical / refining | 316L / 316L sintered | 60–325 | Plain / Dutch | High pressure, high temp | 4–6 weeks |
| Mining / aggregate | 304 / manganese | 4–60 | Plain / Welded | Abrasion, tensile strength | 2–4 weeks |
| Power generation | 316L / 310S | 20–150 | Plain | Thermal cycling, steam | 3–5 weeks |
| Food / beverage | 304 / 316L | 60–400 | Plain / Twill | FDA / EU compliance | 2–4 weeks |
| Water treatment | 304 / 316L | 20–200 | Plain | Chloride resistance (316L) | 2–3 weeks |
| Automotive / aerospace | 316L | 80–200 | Plain / Dutch | Fuel compatibility, vibration | 3–5 weeks |
| Battery / new energy | 304 / 316L | 200–500 | Plain | Ultra-clean, low contamination | 3–5 weeks |
Key takeaway: The fastest way to receive an accurate quotation is to provide your operating temperature, chemical exposure, target particle size, and required certifications in your initial inquiry. This eliminates back-and-forth and allows the manufacturer to recommend the optimal specification on the first response.

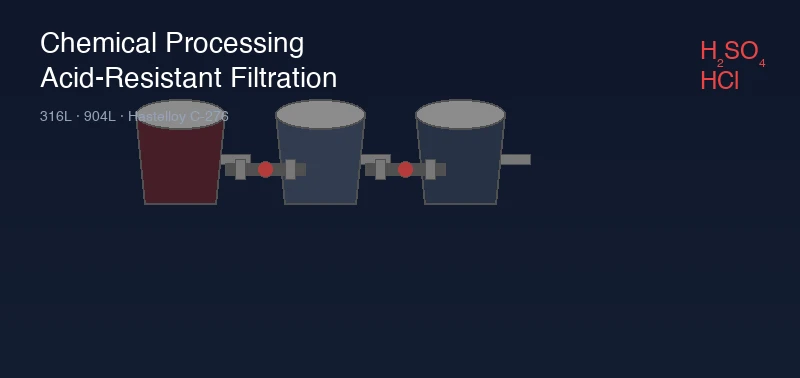

1. Chemical Processing: Acid Resistance and Material Validation
Chemical plants process sulfuric acid, hydrochloric acid, organic solvents, and high-temperature reaction media that destroy standard synthetic filters within weeks. Stainless steel mesh is the filtration material of choice because it withstands aggressive chemistries while maintaining precise aperture tolerances.
Common Chemical Processing Applications
| Application | Mesh Type | Purpose | Typical Grade |
|---|---|---|---|
| Reactor bed support | 60–100 mesh plain | Hold catalyst in place; allow reactant flow | 316L |
| Catalyst recovery | 200–325 mesh twill | Capture expensive catalyst particles post-reaction | 316L |
| Distillation column packing | 40–80 mesh plain | Increase surface area for vapor-liquid contact | 316L / 904L |
| Safety flame arrestor | 40–60 mesh plain | Prevent flame propagation in vent lines | 316L |
| Acid filtration | 100–200 mesh twill | Remove particulate from process acids | 316L / 904L |
| Solvent recovery | 150–250 mesh plain | Filter recycled solvents before reuse | 316L |
Material Selection for Chemical Environments
- 316L: Standard for most acidic and oxidative environments. Molybdenum content (2–3%) provides resistance to pitting and crevice corrosion.
- 904L: Specified for high-chloride or strongly reducing acid environments (e.g., sulfuric acid >10%, phosphoric acid processing). Nickel content (23–28%) and higher molybdenum (4–5%) deliver superior corrosion resistance at a 2.5–3× cost premium over 316L.
- Hastelloy C-276: For extreme acid exposure (hot hydrochloric acid, wet chlorine). Available on custom order with 6–8 week lead time.
Procurement tip: For chemical processing orders, always request EN 10204 3.1 Mill Test Certificates with full chemical composition. If the supplier cannot provide mill traceability, they are a trading company, not a manufacturer.
How to Request a Quotation for Chemical Processing Mesh
Include these details in your RFQ:
- Chemical name and concentration (%)
- Operating temperature (°C)
- Operating pressure (bar or PSI)
- Target particle size or mesh count
- Required dimensions (rolls, discs, cylinders, or custom shapes)
- Annual volume and batch frequency
- Certification requirements (material cert, surface finish report, NDT if applicable)
2. Petrochemical & Oil Refining: High-Pressure, High-Temperature Filtration
Upstream oil production, midstream transport, and downstream refining all rely on stainless steel mesh to protect pumps, valves, compressors, and catalyst beds from particulate damage. In refineries, mesh operates continuously at temperatures exceeding 400°C and pressures above 100 bar.
Petrochemical Filtration Applications
| System | Mesh Specification | Purpose | Replacement Cycle |
|---|---|---|---|
| Wellhead sand screen | 20–40 mesh, 316L welded | Block sand and formation solids from entering production tubing | 2–4 years |
| Hydrotreater feed filter | 100–200 mesh, 316L plain | Remove solids before catalytic hydrogenation | 6–12 months |
| FCC catalyst recovery | 200–325 mesh, 316L twill | Capture fluid catalytic cracking catalyst fines | 3–6 months |
| Hydraulic oil filter | 100–200 mesh, multi-layer sintered | Protect hydraulic actuators in refining equipment | 6–12 months |
| Fuel gas coalescer | 60–150 mesh, 316L dutch | Separate liquid droplets from fuel gas streams | 12–18 months |
Why Multi-Layer Sintered Mesh for Refining?
Refinery applications often require multi-layer sintered mesh because:
- It withstands pressure spikes above 5,000 PSI without rupture
- Graded density layers capture particles from coarse to fine in a single element
- It is back-flushable, reducing replacement frequency and downtime
- Stainless steel construction eliminates fiber shedding from synthetic media
At ANPING MAOYE, we manufacture 2-layer to 5-layer sintered discs and cylinders in 316L with pore ratings from 5 μm to 200 μm. Standard discs are available in diameters from 25 mm to 500 mm; custom sizes are manufactured to drawing.
Related reading: Stainless Steel Filter Cylinders & Cartridges: Complete Guide

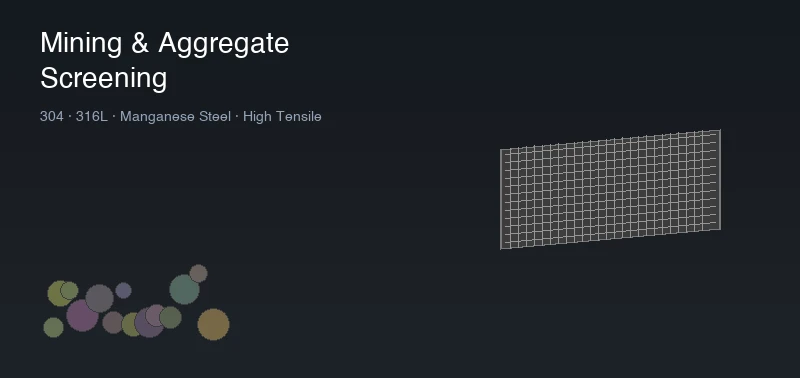

3. Mining & Aggregate Screening: Abrasion Resistance and Throughput
Mining operations generate enormous volumes of material that must be sized, separated, and dewatered before transport. Vibrating screen decks, trommel screens, and dewatering panels consume wire mesh at high rates — making material selection and supplier reliability critical to production uptime.
Mining Screen Mesh Requirements
| Application | Mesh Type | Grade | Key Property |
|---|---|---|---|
| Vibrating screen deck (primary) | 10–40 mesh, heavy wire | 304 / manganese | High tensile, abrasion resistance |
| Vibrating screen deck (fine) | 60–100 mesh | 304 | Balance of precision and durability |
| Crusher relief screen | 20–60 mesh, thick wire | High-carbon / manganese | Impact resistance |
| Dewatering screen | 40–80 mesh | 304 / 316L | Corrosion resistance (for sulfide ores) |
| Trommel screen | 10–50 mesh, welded | 304 | Large open area, fast throughput |
Material Selection for Mining
- 304 stainless steel: Standard for general ore processing. Good corrosion resistance for non-sulfide minerals.
- Manganese steel (65Mn): Higher hardness and tensile strength than 304. Preferred for highly abrasive ores (quartz, granite, basalt) where stainless steel wears too quickly.
- 316L: Specified for sulfide ore processing, acid mine drainage, or coastal mining operations where chlorides are present.
- Rubber / polyurethane composite mesh: For extreme abrasion, some operations specify composite screens with stainless steel reinforcement. We can supply hybrid constructions on request.
Mining Mesh Procurement Considerations
Mining buyers should prioritize:
- Wire tensile strength: Higher-tensile wire lasts longer under vibration load
- Hook / edge reinforcement: Properly formed tension hooks prevent screen failure at the frame interface
- Dimensional tolerance: ±1 mm on width and length for proper tensioning in vibrating decks
- Batch consistency: Mines operate 24/7; inconsistent mesh quality causes unplanned shutdowns
Bulk pricing note: Mining screen mesh is typically the highest-volume stainless steel mesh application. For orders exceeding 500 m² per month, ANPING MAOYE offers annual supply agreements with fixed pricing, quarterly delivery schedules, and dedicated production lines to ensure consistent quality and on-time delivery.
4. Power Generation & Energy: Thermal Cycling and Steam Resistance
Power plants — whether coal, gas, nuclear, or renewable — use stainless steel mesh for steam filtration, cooling water intake, flue gas treatment, and turbine protection. The primary challenge is thermal cycling: mesh heats to 500–600°C during operation and cools rapidly during shutdowns, inducing thermal stress and oxidation.
Power Generation Applications
| System | Mesh Specification | Purpose | Temperature |
|---|---|---|---|
| Steam turbine protection | 80–150 mesh, 316L | Filter particulate from steam before turbine blades | 300–550°C |
| Cooling water intake | 20–60 mesh, 304 / 316L | Block debris, fish, and algae from intake pumps | Ambient |
| Flue gas desulfurization | 60–150 mesh, 316L | Mesh demisters remove sulfur mist from scrubbers | 50–150°C |
| Boiler feedwater filter | 100–200 mesh, 316L | Remove solids before high-pressure boiler | 150–250°C |
| Incinerator flue gas filter | 80–150 mesh, 310S | High-temperature particulate capture | 600–900°C |
Material Selection for High-Temperature Energy Applications
- 316L: Standard for steam and boiler applications up to 450°C continuous. Good oxidation resistance and mechanical strength at elevated temperatures.
- 310S (25Cr-20Ni): For temperatures above 500°C (incinerators, high-temperature flue gas). Significantly better oxidation resistance than 316L at temperatures above 600°C.
- Inconel 600/625: For extreme temperature or corrosive environments (nuclear steam generators, certain geothermal applications). Available on custom order.
Power Plant Procurement Strategy
Power plant procurement typically involves long-term supply agreements with strict quality and documentation requirements:
- ASME Section VIII compliance for pressure-containing filter elements
- Material traceability: Heat number tracking from raw wire to finished mesh
- Dimensional inspection reports: Critical for filter elements that must fit existing housings
- Surface finish documentation: For high-purity steam and nuclear applications
5. Food & Beverage Processing: Hygiene, Compliance, and Cleanability
Food and beverage manufacturers require FDA-compliant, hygienic, and temperature-resistant filtration media that can withstand daily CIP (clean-in-place) and SIP (sterilization-in-place) cycles without degradation.
Food Processing Mesh Applications
| Application | Mesh Specification | Grade | Requirement |
|---|---|---|---|
| Flour and sugar sifting | 60–200 mesh, plain | 304 | Food contact, dry processing |
| Juice and wine clarification | 100–325 mesh, plain / twill | 316L | Acid resistance, electropolish optional |
| Extruder screens | 60–150 mesh, plain | 304 / 316L | High temp, food contact |
| Cooking oil filtration | 80–200 mesh, plain | 316L | Heat + oil resistance |
| Baking conveyor belts | 10–40 mesh, balanced weave | 304 | Heat resistance to 300°C |
| Dairy filtration | 100–200 mesh, electropolished | 316L | Hygiene, cleanability |
Why 316L for Acidic and Salty Foods?
While 304 is the minimum standard for food contact, 316L is strongly recommended for:
- Acidic foods (tomato sauce, citrus juice, vinegar, pickle brine)
- High-salinity applications (brine injection, cheese processing, seafood)
- CIP chemicals (caustic + nitric acid cycles)
- High-temperature processes (deep frying, UHT pasteurization)
For dairy and baby food applications, electropolished 316L with Ra ≤ 0.5 μm is often specified to minimize bacterial adhesion and support sanitation validation.
Related reading: Stainless Steel Mesh for Food & Beverage: FDA Grade Guide
6. Water Treatment & Filtration: Corrosion Resistance and Reusability
Municipal water plants, desalination facilities, and industrial process water systems all rely on stainless steel mesh for reusable, corrosion-resistant primary and secondary filtration.
Water Treatment Mesh Specifications
| Application | Mesh Count | Micron | Grade | Notes |
|---|---|---|---|---|
| Raw water intake | 10–30 mesh | 590–2000 μm | 304 | High flow, coarse debris removal |
| Primary sediment | 40–60 mesh | 250–380 μm | 304 | Sand and grit removal |
| Secondary filtration | 80–150 mesh | 100–177 μm | 316L | Pre-RO protection |
| Reverse osmosis pre-filter | 100–200 mesh | 74–149 μm | 316L | Protects membranes from particulate |
| Sea / brackish water | 80–200 mesh | 72–177 μm | 316L | Chloride resistance critical |
| Activated carbon support | 20–40 mesh | 420–840 μm | 304 | Holds carbon media in contactor vessels |
Why 316L for Saltwater and Chlorinated Systems?
Chloride ions are the primary cause of pitting corrosion in stainless steel. In saltwater, brackish water, or heavily chlorinated municipal systems, 316L is essential because its 2–3% molybdenum content provides resistance to chloride-induced attack. Using 304 in these environments typically results in premature mesh failure within 6–18 months.
Procurement tip: For large water treatment projects (municipal or industrial), specify mesh rolls rather than pre-cut panels. Rolls reduce waste, allow on-site cutting to exact dimensions, and simplify inventory management. Standard roll widths are 1.0 m and 1.2 m; lengths are 30 m per roll.
Related reading: Stainless Steel Mesh for Water Treatment: Procurement Guide
7. Automotive & Aerospace: Precision, Vibration, and Traceability
Both automotive and aerospace industries demand lightweight, precision filtration components with full material traceability and certification.
Automotive Applications
| System | Mesh Specification | Grade | Purpose |
|---|---|---|---|
| Diesel particulate filter (DPF) support | 100–200 mesh, 316L | 316L | Support catalytic coating on DPF substrates |
| Gasoline particulate filter (GPF) | 100–200 mesh, 316L | 316L | Support GPF wall-flow substrates |
| Air intake pre-filter | 40–80 mesh, 304 | 304 | Block debris from turbocharger intake |
| Battery separator mesh | 200–400 mesh, 316L | 316L | Lithium-ion electrode coating support |
| Brake fluid filter | 150–250 mesh, 316L | 316L | Protect ABS hydraulic valves |
| Fuel injector protection | 100–200 mesh, 316L | 316L | Remove particulate before high-pressure injectors |
Aerospace Applications
| System | Mesh Specification | Grade | Certification |
|---|---|---|---|
| Jet fuel filtration | 100–200 mesh, 316L | 316L | AMS 5596, full traceability |
| Hydraulic line filter | 150–250 mesh, 316L | 316L | Boeing BMS, Airbus AIMS |
| EMI/RFI shielding | 80–150 mesh, 316L | 316L | MIL-DTL-83528 |
| Engine nacelle sound attenuation | 40–80 mesh, 316L | 316L | Flame resistance per FAR 25.853 |
Aerospace Procurement Requirements
Aerospace mesh orders require material lot traceability, full chemical analysis, and conformance certificates to AMS or BMS standards. Standard commercial mesh certificates are typically insufficient. ANPING MAOYE can supply aerospace-grade mesh with:
- Full mill test certificates (EN 10204 3.1 or 3.2)
- Chemical composition analysis by ICP-OES
- Grain size analysis per ASTM E112
- Dimensional inspection reports (CMM if required)
- Certificate of conformance to AMS 5596 or customer-specific BMS
Lead time: Aerospace-grade mesh with full certification typically requires 4–6 weeks due to additional testing and documentation.

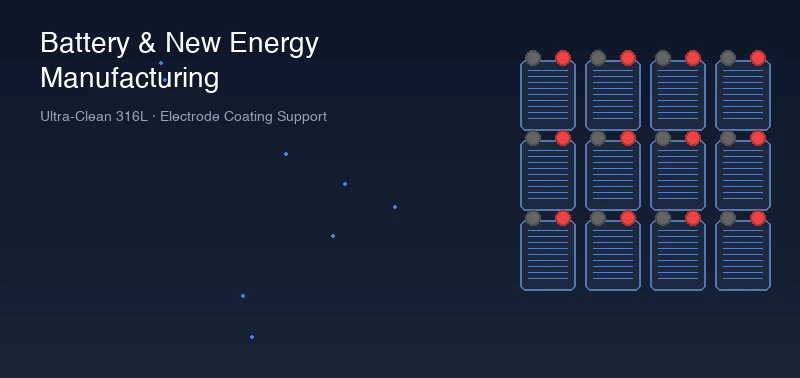

8. Battery & New Energy Manufacturing: Ultra-Clean Precision Mesh
The global transition to electric vehicles and grid-scale energy storage has created a surge in demand for ultra-clean, high-precision stainless steel mesh in battery electrode manufacturing.
Battery Manufacturing Mesh Applications
| Process | Mesh Specification | Grade | Requirement |
|---|---|---|---|
| Electrode coating support | 200–400 mesh, plain | 316L | Ultra-clean, no surface contamination |
| Electrode slurry filtration | 150–325 mesh, plain | 316L | Remove agglomerates before coating |
| Separator porosity testing | 100–200 mesh, plain | 316L | Reference standard for pore size measurement |
| Dry room air filtration | 60–150 mesh, 316L | 316L | Low particle shedding in dry room environment |
| Cell formation vent filters | 100–200 mesh, 316L | 316L | Electrolyte vapor management |
Why Battery Manufacturing Demands the Cleanest Mesh
In lithium-ion battery production, any surface contamination — oils, particles, or metallic residues from the weaving process — can cause:
- Internal short circuits
- Reduced cell capacity
- Thermal runaway risk
- Rejected electrode batches
Battery-grade mesh requires ultra-clean processing after weaving:
- Degreasing in alkaline solution to remove all drawing lubricants
- Ultrasonic cleaning in deionized water
- Cleanroom packaging in nitrogen-purged bags
- Particle count testing (ISO 14644-1 Class 7 or better)
ANPING MAOYE supplies battery-grade 316L mesh with low-contamination processing and cleanroom-compatible packaging. Certificates include particle count reports and surface contamination testing (FTIR or GC-MS upon request).
Related reading: Sintered Mesh vs Woven Mesh: Complete Comparison
9. How to Choose a Cross-Industry Mesh Supplier
If your organization operates across multiple sectors — for example, a chemical division and a food division — you benefit from consolidating mesh procurement with a single manufacturer capable of supplying multiple grades and specifications.
Advantages of Single-Supplier Consolidation
| Advantage | Why It Matters |
|---|---|
| Consistent quality baseline | Same weaving equipment, same QC lab, same tolerance standards across all orders |
| Volume pricing | Annual contracts spanning multiple divisions unlock tiered pricing |
| Simplified vendor management | One supplier qualification audit, one quality agreement, one invoice |
| Faster new product development | Existing supplier relationship accelerates custom prototyping for new applications |
| Shared technical support | Engineering team understands your full portfolio, not just one product line |
What to Look for in a Multi-Industry Mesh Manufacturer
| Capability | Evidence to Request |
|---|---|
| Own production facility | Factory video, production photos, ISO 9001 certificate |
| Multi-grade capability | 304, 316L, 904L, and specialty alloys (Hastelloy, Inconel, titanium) |
| Surface treatment | Electropolishing, passivation, annealing, calendering |
| Forming capability | Discs, cylinders, pleated elements, welded frames, custom shapes |
| Documentation | MTC 3.1, surface finish reports, third-party test certificates |
| Cleanroom processing | For food, pharma, and battery applications |
| Export experience | Customs documentation, Incoterms knowledge, logistics support |
At ANPING MAOYE, we operate a fully integrated manufacturing facility in Anping County, Hebei Province — the wire mesh capital of China. We produce 304, 316L, and 904L mesh from raw wire drawing through weaving, surface treatment, forming, and final inspection. This vertical integration ensures quality control at every stage and allows us to offer custom specifications that trading companies cannot match.
10. Frequently Asked Questions (FAQ)
How do I specify the right mesh for my industry if I am not a metallurgist?
Start with these five questions and share them with your supplier:
- What are you filtering? (liquid, gas, solid, powder, slurry)
- What is the operating temperature?
- What chemicals is the mesh exposed to? (name and concentration)
- What particle size must be retained? (or target mesh count / micron rating)
- What certifications does your customer or regulator require? (FDA, EU, ASME, AMS, etc.)
A qualified manufacturer will use these inputs to recommend the optimal grade, weave, and micron rating.
Can one manufacturer supply mesh for multiple industries?
Yes — but only if the manufacturer operates its own production facility and maintains quality systems across multiple material grades and surface treatments. Trading companies typically source from multiple sub-suppliers, which introduces quality inconsistency and documentation gaps. Always verify the manufacturer has ISO 9001 certification with scope covering stainless steel wire mesh production.
What is the difference between a Mill Test Certificate (MTC) 2.1 and 3.1?
- MTC 2.1: The manufacturer declares that the material complies with the order. No independent testing.
- MTC 3.1: The manufacturer’s own authorized inspection department verifies the material. Includes actual test data (chemical composition, mechanical properties).
- MTC 3.2: An independent third-party inspector (not employed by the manufacturer) verifies the material. Most expensive and rigorous.
For chemical processing and aerospace, MTC 3.1 is the minimum standard. For critical pharmaceutical or nuclear applications, MTC 3.2 may be required.
How do I reduce mesh procurement costs without sacrificing quality?
- Standardize specifications across divisions to increase order volume and unlock tiered pricing
- Order rolls instead of cut-to-size panels when your fabrication shop can cut in-house
- Negotiate annual contracts with quarterly delivery schedules instead of spot orders
- Specify 304 instead of 316L when the operating environment is not corrosive (e.g., dry, ambient-temperature applications)
- Work directly with the manufacturer instead of distributors to eliminate the middleman margin
What is the typical lead time for custom stainless steel mesh?
| Product Type | Standard Lead Time | Rush Lead Time |
|---|---|---|
| Standard mesh rolls (304/316L) | 2–3 weeks | 1 week |
| Custom mesh counts or wire diameters | 3–5 weeks | 2–3 weeks |
| Electropolished mesh | 4–6 weeks | 3–4 weeks |
| Sintered multi-layer discs / cylinders | 4–6 weeks | 3–4 weeks |
| Custom-formed filters (discs, cylinders, baskets) | 3–5 weeks | 2–3 weeks |
| Aerospace-grade with full certification | 5–8 weeks | 4–5 weeks |
Do you provide samples for qualification testing?
Yes. ANPING MAOYE provides free sample packs for standard mesh specifications (A4-sized samples, 200 × 200 mm) and discounted qualification samples for custom specifications. Sample costs are fully deductible from the first bulk order. Each sample includes a material certificate and surface finish report (if applicable).
Conclusion
Stainless steel mesh is not a commodity — it is a precision-engineered component whose performance depends on matching the right material, weave, and micron rating to the specific demands of your industry. Whether you are sourcing filtration media for a petrochemical refinery, a vibrating screen deck in a mining operation, or an electrode coating line in a battery factory, the procurement process starts with clear technical specifications and a manufacturer capable of meeting them.
At ANPING MAOYE, we supply custom stainless steel mesh solutions to industrial clients across eight major sectors, backed by ISO 9001 quality management, full material traceability, and in-house surface treatment and forming capabilities. We do not just sell mesh — we help you specify, validate, and optimize the right filtration solution for your application.
Request a sector-specific quotation with your technical requirements, or chat with our engineering team on WhatsApp for immediate technical consultation. For custom specifications, we typically provide initial quotations within 24 hours and detailed technical proposals within 48 hours.
Related Reading
- Stainless Steel Mesh Applications: Complete Guide by Industry
- How to Choose Stainless Steel Mesh: 7 Critical Factors
- 304 vs 316 Stainless Steel Mesh: Which Grade Do You Need?
- Stainless Steel Mesh for Food & Beverage: FDA Compliance Guide
- Stainless Steel Mesh for Water Treatment: Procurement Guide
- Stainless Steel Mesh Price Guide 2026
- Stainless Steel Filter Cylinders & Cartridges: Complete Guide
- Custom Stainless Steel Mesh OEM Manufacturing Guide
